title: 私桩小程序配置流程

date: 2023-12-26 11:35:34

私桩小程序配置流程

申请小程序

此步骤需要客户自行完成

访问 mp.weixin.qq.com 申请一个小程序
按照提示申请小程序
建议类目：工具 > 设备管理；建议名称为品牌名称+家用充电桩***
完成小程序审核认证流程，并进行实名

配置小程序

此步骤可由客户自行完成，我们配合，如遇到不太懂技术的客户，建议由客户扫码我们登录他的小程序账号进行配置登录方式为搜索微信小程序将二维码截图给客户扫码登录即可

左侧边栏找到【开发】，点击【开发管理】

选择【开发设置】，点击【IP白名单】配置好IP，需要配置的IP如下：

   211.159.224.10
   124.223.103.169
   47.98.45.35
   120.26.227.50
   121.41.75.233

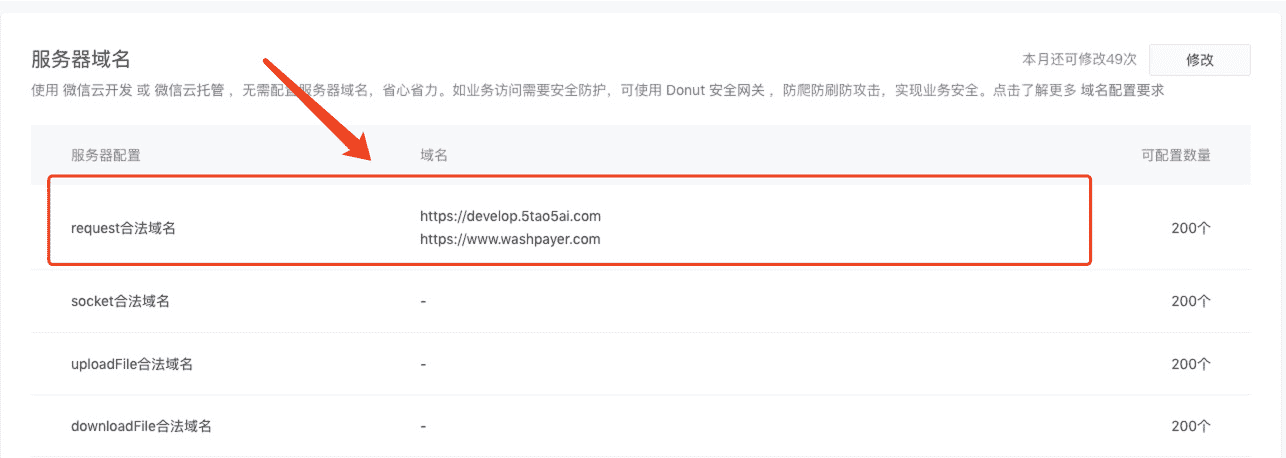

往下拉，继续【服务器域名】配置，需要配置的服务器域名如下

   https://develop.5tao5ai.com
   https://www.washpayer.com

继续往下拉，找到【扫普通链接二维码打开小程序】配置，配置链接如下，编号占用情况请参见文末【附录】。

需要注意的是，此步骤有一个校验需要上传到我们服务器，需要将文件下载下来然后联系邵鹏或者陈军通过阿里云上传

记录下【开发设置】的AppID(小程序ID) 和 AppSecret(小程序密钥)，后期配置。

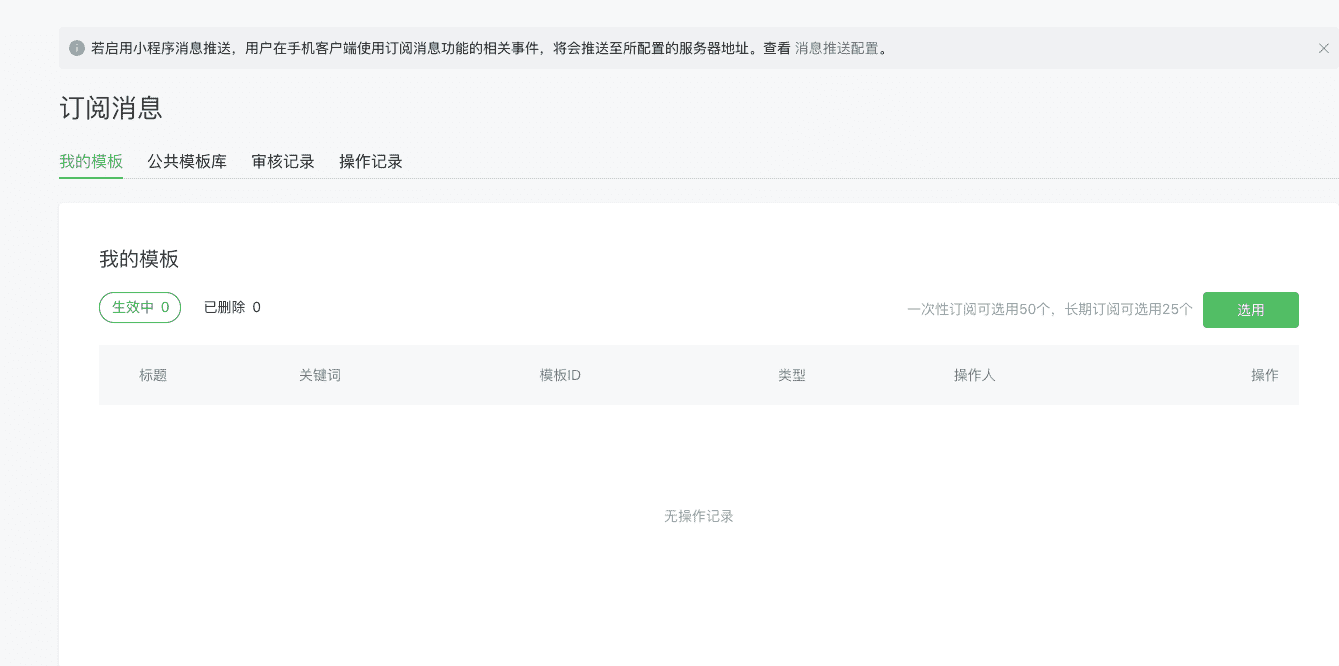

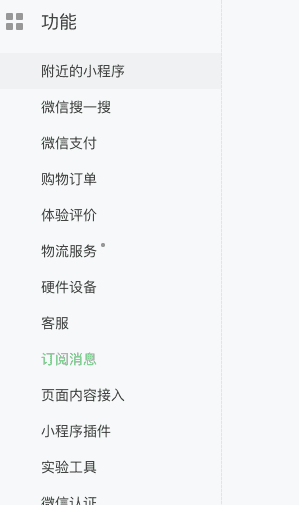

左侧边栏【功能】的【订阅消息】点击，进入配置订阅消息

配置的消息主要是三种：

充电开始通知
充电结束通知
充电异常通知

服务器配置

服务器配置目前没有功能页面配置需要执行shell程序，后期会将页面配置加上

def add_home_car_app():
    data = {
        "appId" : "wxf83907c4311371c5",
        "appName" : 请输入小程序名称,
        "smsVendor" : "zthy",
    }
    wechatMiniApp  = {
        "appid" : 请输入appID,
        "secret" : 请输入秘钥,
        "mchid" : "1480791292",
        "apikey" : "12345678901234567890123456789012",
        "sslcert_path" : "/etc/washpayer_private_files/wechat_weifule_apiclient_cert.pem",
        "sslkey_path" : "/etc/washpayer_private_files/wechat_weifule_apiclient_key.pem",
        "manual_withdraw" : False,
        "sslCert" : "-----BEGIN CERTIFICATE-----\nMIID6TCCAtGgAwIBAgIUZGC4sjt8KB3nUmpd41FlVJjZqQowDQYJKoZIhvcNAQEL\nBQAwXjELMAkGA1UEBhMCQ04xEzARBgNVBAoTClRlbnBheS5jb20xHTAbBgNVBAsT\nFFRlbnBheS5jb20gQ0EgQ2VudGVyMRswGQYDVQQDExJUZW5wYXkuY29tIFJvb3Qg\nQ0EwHhcNMjIxMTAzMDM1NzIxWhcNMjcxMTAyMDM1NzIxWjB7MRMwEQYDVQQDDAox\nNDgwNzkxMjkyMRswGQYDVQQKDBLlvq7kv6HllYbmiLfns7vnu58xJzAlBgNVBAsM\nHuatpuaxieWkp+a6kOenkeaKgOaciemZkOWFrOWPuDELMAkGA1UEBgwCQ04xETAP\nBgNVBAcMCFNoZW5aaGVuMIIBIjANBgkqhkiG9w0BAQEFAAOCAQ8AMIIBCgKCAQEA\nl4Hwnr66jBWb+av/DJVuzU6/gteodQLt66CulXWEslQUjVN9gSZ7BqKmuufyzBIl\nPdNx8T5LpIrnSnbkv5hbTto/2x3R0b6ka/kkhLrhp3fO4Z0aX8QA8Q3Yamqbndsx\nqKVPEuDCKeCIVmH5vGzt/uwB9PboP9+C4eQ+grDA1fFRhEWiLG6froYlZI+qQjVr\nj8FlBLCtAJ2kXaxruBsNRc1r4t3/PBOt6uR/6weXByNtvmoPTLQb+ju/SLxfKdug\n9uFZ+xnqPQZbr0q4O6fbkRpYIXO2ZppbBuh9V5qobaxoJw8P67U216MIG/sg8bAB\nHMslk89vVSGAWJQLDjccoQIDAQABo4GBMH8wCQYDVR0TBAIwADALBgNVHQ8EBAMC\nA/gwZQYDVR0fBF4wXDBaoFigVoZUaHR0cDovL2V2Y2EuaXRydXMuY29tLmNuL3B1\nYmxpYy9pdHJ1c2NybD9DQT0xQkQ0MjIwRTUwREJDMDRCMDZBRDM5NzU0OTg0NkMw\nMUMzRThFQkQyMA0GCSqGSIb3DQEBCwUAA4IBAQCqT+I12ld3nAicvvU3YtpZURmf\nCJi4uZN8O4O14lvout2ZvXjIECSyQEatWjvIiljWla9r9gSpn5zlI0YMVpflx96+\nRbzTirFR/h4ipn0c0uos1rT9FgOrWG8CSLhG3N0FqTFcGzUnoOHgg/fyyq/esyPQ\n42KzqhfZbI7d/lmhOHCDrQXQGcrazlL9H6nL6RtONdNwlzhnxA+Tk3o+7BDmWR19\niV+N6AM4ZlKPQhQ4dZVwEfT3XjzzWPOVWxXjieBjL/hVjESJXyuk7dkNb+xdSous\n4j7SrVTGeB1v07FLOnpv2Mxk4HuCPsip3mKpS1Ps1JGdw0S4nXCxEHOeRQ86\n-----END CERTIFICATE-----\n",
        "sslKey" : "-----BEGIN PRIVATE KEY-----\nMIIEvgIBADANBgkqhkiG9w0BAQEFAASCBKgwggSkAgEAAoIBAQCXgfCevrqMFZv5\nq/8MlW7NTr+C16h1Au3roK6VdYSyVBSNU32BJnsGoqa65/LMEiU903HxPkukiudK\nduS/mFtO2j/bHdHRvqRr+SSEuuGnd87hnRpfxADxDdhqapud2zGopU8S4MIp4IhW\nYfm8bO3+7AH09ug/34Lh5D6CsMDV8VGERaIsbp+uhiVkj6pCNWuPwWUEsK0AnaRd\nrGu4Gw1FzWvi3f88E63q5H/rB5cHI22+ag9MtBv6O79IvF8p26D24Vn7Geo9Bluv\nSrg7p9uRGlghc7ZmmlsG6H1XmqhtrGgnDw/rtTbXowgb+yDxsAEcyyWTz29VIYBY\nlAsONxyhAgMBAAECggEASCyKZ9UMIPeaWhHpaiE1q3A8IySBB1zh4kGlaWWWVS1g\nrQJ84y1lpf+N1bPxIe3y98TmnrnCZxwUmpCQ4ATAWov1p3hJH9XlldoV33T3UkPs\nteWVTtGccTjbQ7aNc2GcAm7dgGy5kiF4UU5THcP2jF35gKyubt8XBm0oqjFxa3jS\nbK/EYcTluS4O8rKiiNLFJ9sXO3D5gVRYucYMSBPfFjl8zs07h+33D5nmkHbCCm1Q\nn2hVf5WRG9iuOGsj07nbD9YyXECOMakA4UWSqwn/8J5UqWk07NQYFLtG47uGgXHu\n9Sx71o9d0xfF+1L+RkmeOVr7XgeFiKH93iYIBdlTwQKBgQDFzFG0+/o0rW01s3tD\nj/bl8KPIZvDzVb+iVHNk9A9JljCGBRq+DU5BP4JrflOciLI/uPk0dREqm5wCeZAR\nHOlOPCcleKufqkafeIJqymcB4QPvHaw54E9CoMrnMZEz8xl22E2eKJsetBzjqrxI\naYSortPWlhd5knKxjm7RJbHVBQKBgQDEFqjnw8eRoANBOZxpGFadBNMqF6m1hAzc\nj8a8dSEO4MZMflUP4CN4Cb1HA8yn7YoMsOihkzl0Ol2plGsD90CXucQPS3fAE1zC\nIc2un0xfD9fqrFpxF/r1bYiU4KVuVlwZO2Avg9aW/K0h02gHZFIDBzIDgtxe+t9M\nNrZpZyX77QKBgCMB0Wg1vIe8NfruJB/GCA2UNHiQd46pm3wQdEfmxhnhAf+GQcBn\nPHVh1yRNPGEU9G9AvqJhIcOnvMnXV/8fXc9h6A/CtqVQjqVEv9hEsExt1bNpTgUE\nRSLmsGKQrEFEgjo9eCdIyoN5ny9QFXi/bCIqpwVwlQEIQVJZghV0FXA9AoGBAIDd\nF2FAU13LV3g84SJb4UfNTOyjol7siftE7WkaXIBHjWnluAb32LdhRydtQsi1HX0b\nobXVZ/OPC9CO/gkcKzHK3iLjCK6Myu+1gVMZ0vnCErZhUAp0pPM3aYPVYkJxtJLM\nZ3iyXorZQPoy0XHSJudgiiiujh5JJggTCKuaIuc9AoGBAIUOzlcgTDOPACGsszoV\nhH0fracKFgO0RPca+BOaeG1CREhxfzLr2zhfN9dwIpFug5X1lWF2RVLjWCVIGp2m\nP1yQ3VMZHYLT4+/HJFTbAG71SMFNYcR2jY8o0mj9wDx3/E6DvEsoM6rghSvlGtxP\nKTjtxF6u9qoiT93CxagOjMz3\n-----END PRIVATE KEY-----\n",
        "templateIdMap" : {
            "startCharge" : {
                "context" : "{\"time4\": {\"color\": \"#173177\", \"value\": \"${startTime}\"}, \"thing1\": {\"color\": \"#173177\", \"value\": \"${devName}\"}}",
                "templateId" : "ulNBNIXMvKGdhMdHG86ZNlIhE1m1rkgWFYMde4VQ_aU"
            },
            "stopCharge" : {
                "context" : "{\"thing1\": {\"color\": \"#173177\", \"value\": \"${devName}\"}, \"thing5\": {\"color\": \"#173177\", \"value\": \"${reason}\"}}",
                "templateId" : "tEmN_2U8d8Ns4pHkEiier2Wje8AEkpdUlJOfMKbli7Y"
            },
            "chargeException" : {
                "context" : "{\"thing6\": {\"color\": \"#173177\", \"value\": \"${devName}\"}, \"thing5\": {\"color\": \"#173177\", \"value\": \"${reason}\"}}",
                "templateId" : "iq5Rb31PQa_FC0twIuGLEblbNKgtYHT9wKSzwEAgEsA"
            }
        }
    }

    from apps.web.home_charger.models import AppInfo
    from apps.web.core.models import WechatMiniApp
    app = WechatMiniApp(**wechatMiniApp)
    appinfo = AppInfo(**data)
    appinfo.wechatMiniApp = app
    appinfo.save()

小程序发布

将小程序相应文件编译后发布

小程序文件地址为：找陈总

设备配置

把设备的端口地址指向我们的服务器：47.96.229.231 9001端口
设备的二维码和逻辑编码绑定。二维码规则参考上面二维码地址规则。
